$149.00
Title
$179.00

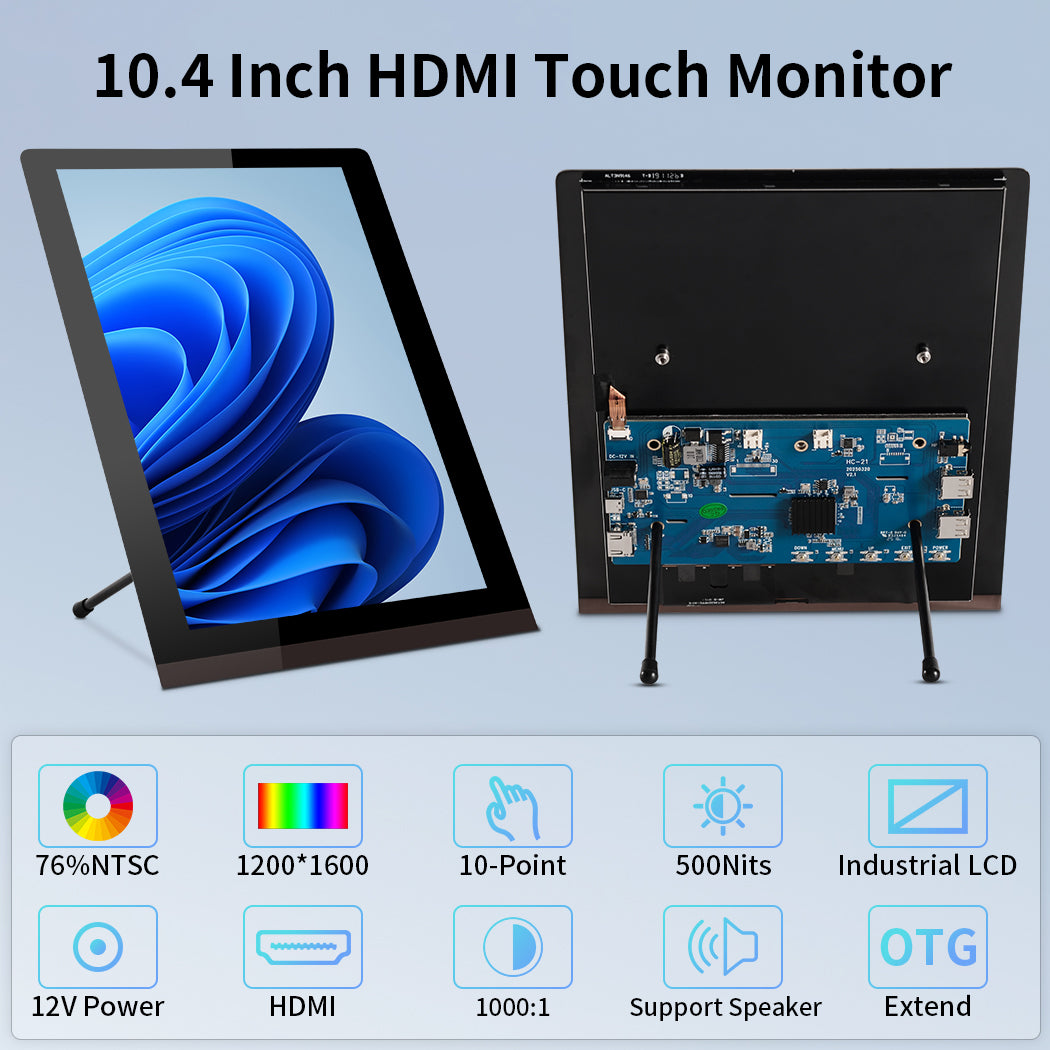

  • 10.4 Inch IPS 1200*1600 3:4 Portrait Display

  • Industrial Level 500Nits Mini Touch Monitor

  • 10 Points Capacitive Usb Touchscreen

  • Two Usb A Otg Ports

IPS 3:4 Vertical Display

500Nits High Brightness

10 Points Touch

USB A OTG

 If you want to customize this product, please contact now

  • description

  • tech specs

  • support

  • download

  • reviews

Magedok 10.4 Inch IPS 1200*1600 Touchscreen Monitor HDMI Mini Display

Small Touch Screen More Details

Industrial Grade Lcd Screen

76%NTSC Color

Optically Bonding

Simple Stand

Experience Unmatched Portability with Magedok

3:4 Portrait Display

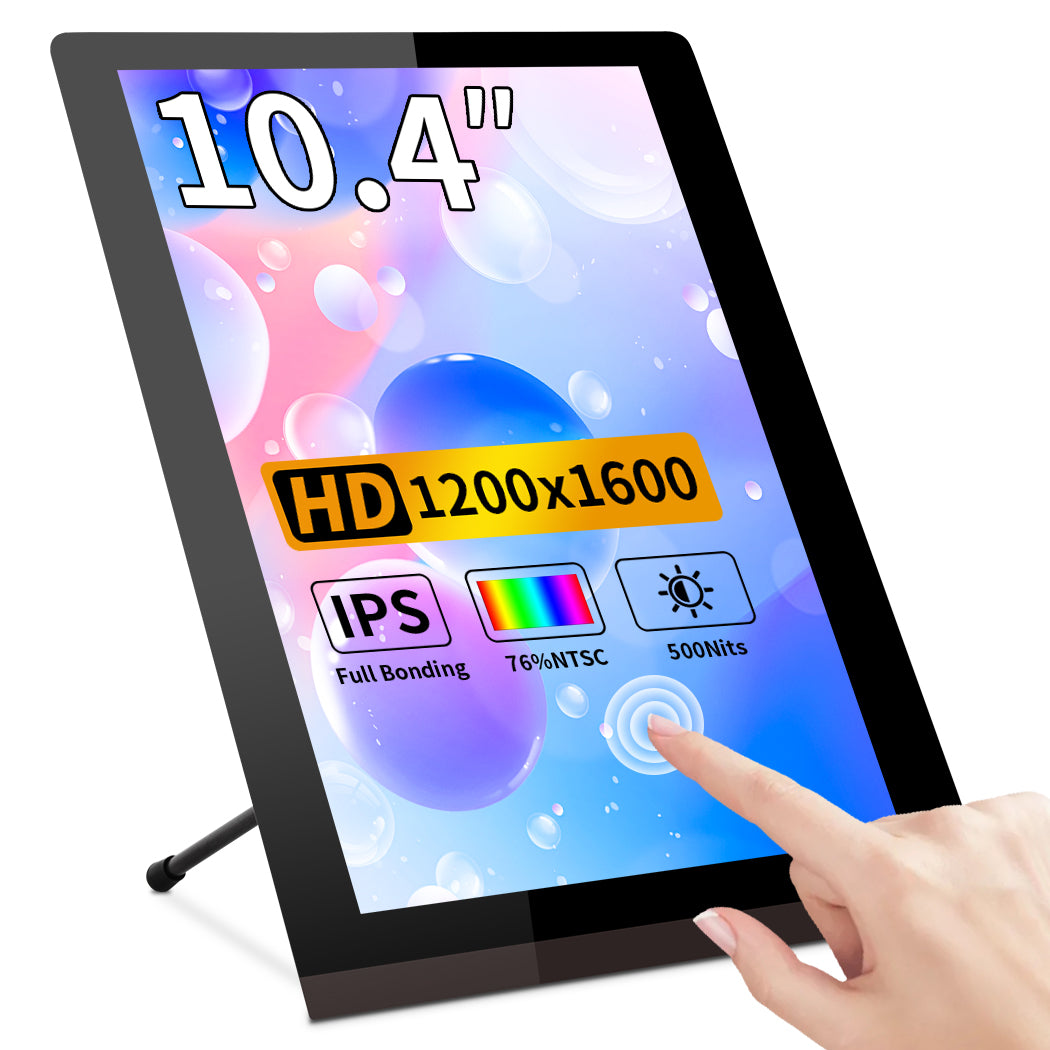

10.4 Inch Small Touch Screen Monitor, Delivering A Sharp 1200×1600 Resolution, 500 Nits Brightness, 1000:1 Contrast Ratio, And 16.8 Million Colors.

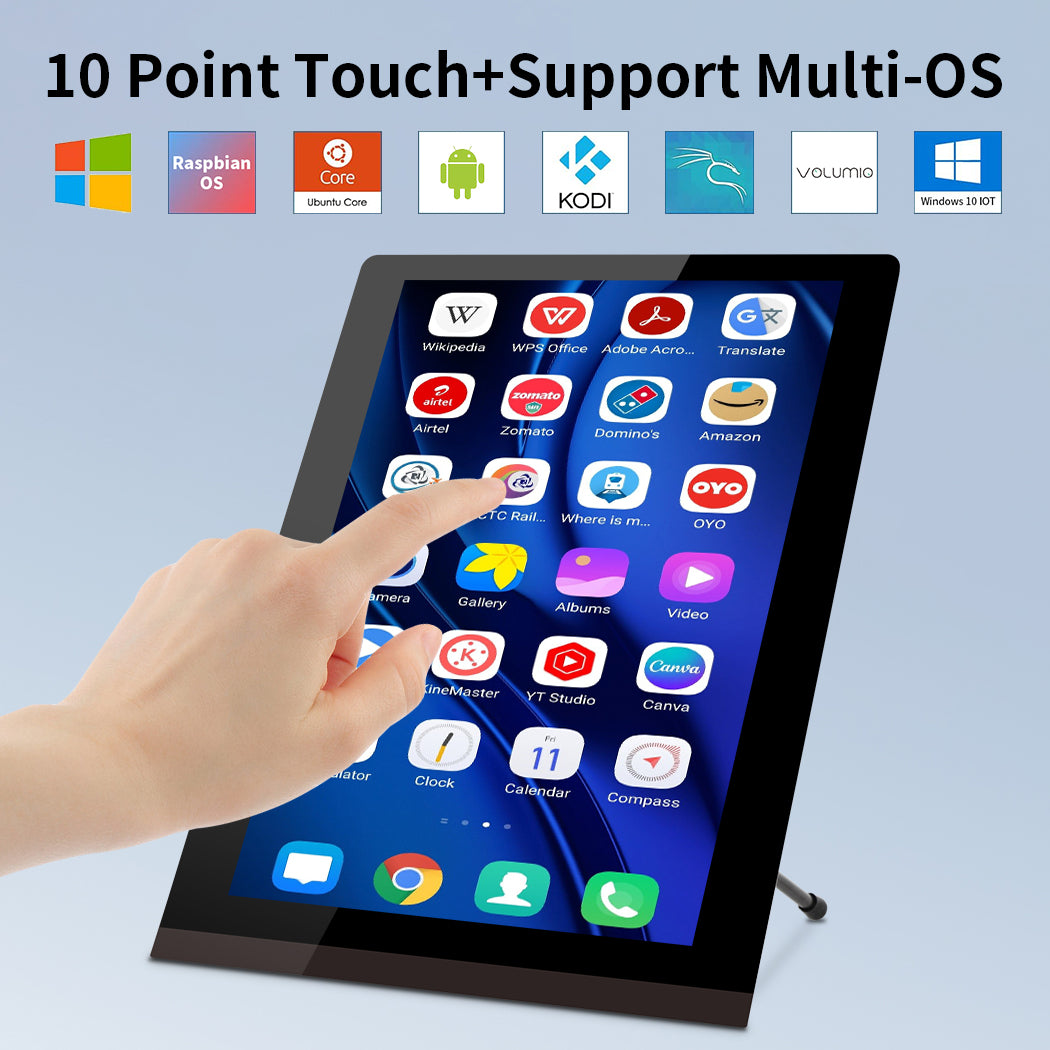

Supports 10-Points Multitouch

Supports 10-Points Multitouch On Windows 11/10 And Android 6.0+, Single-Touch On Linux/Raspberry Pi. Plug-And-Play Via USB.

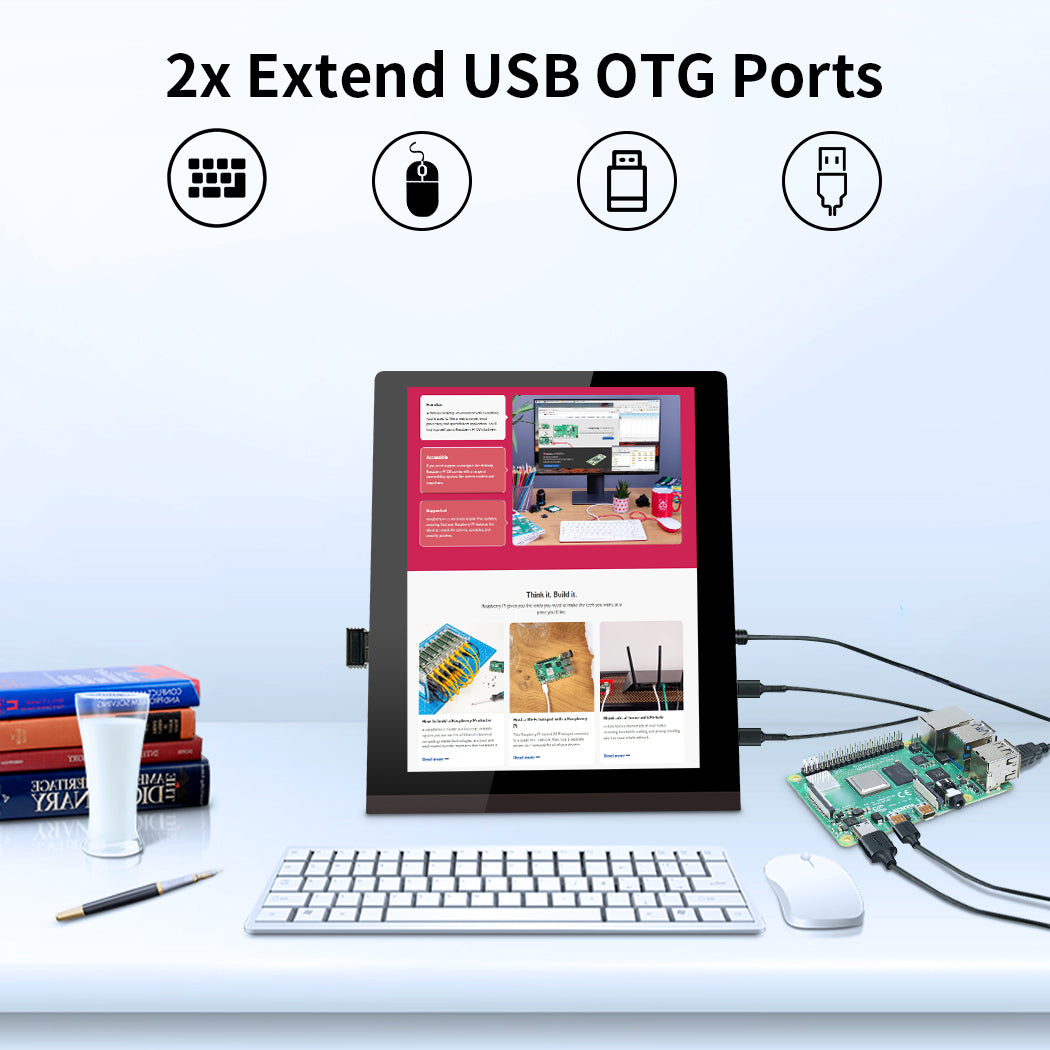

Support USB A OTG Ports

The Mini Display Features Two USB-A (OTG) Ports For Peripheral Expansion.Works Seamlessly With Raspberry Pi5/4, Jetson Nano, Mini PCs, And Other Embedded Systems.

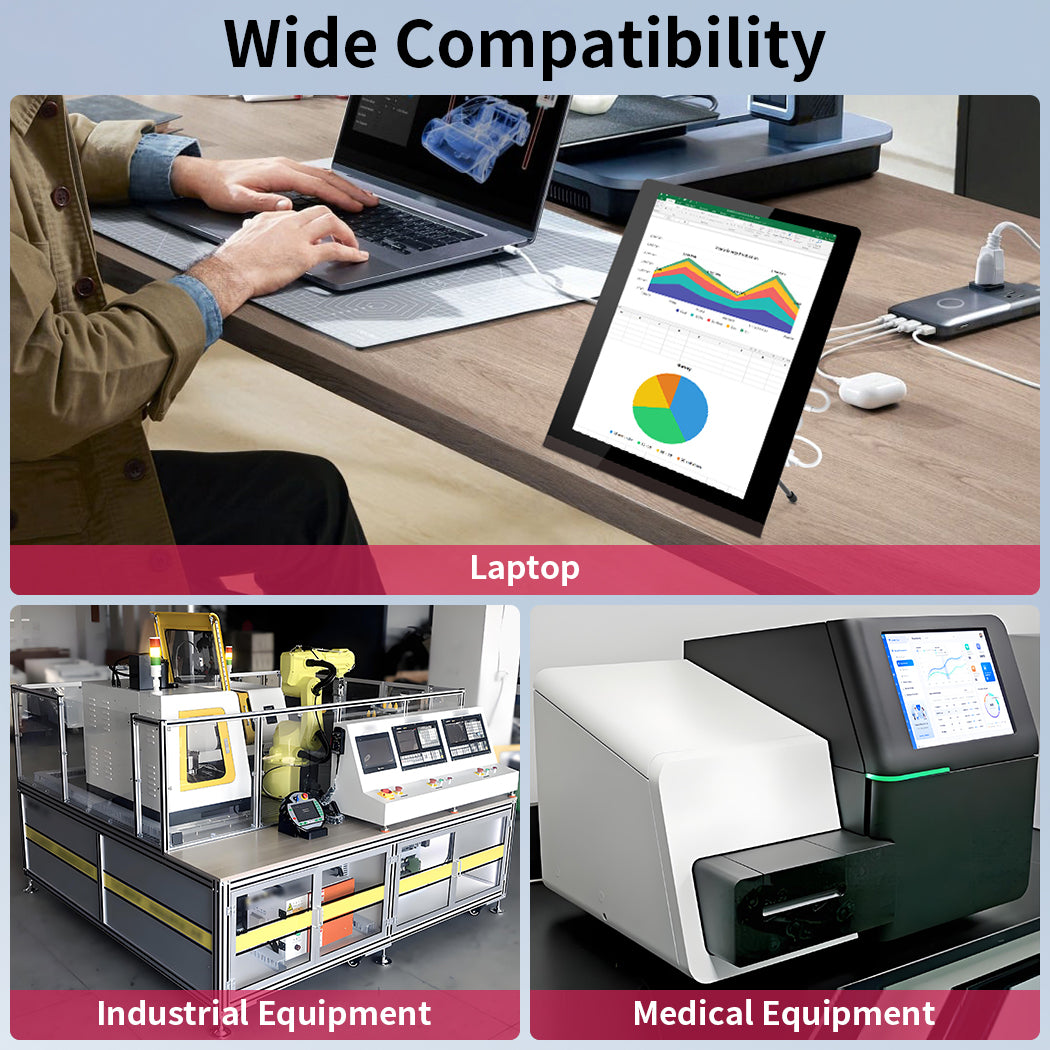

Versatile Connectivity & Widely Compatible

30-Day Back Guarantee

Hassle-Free Warranty

Lifetime Customer Support

Let's Hear What Our Customers Say

Regina Moore

The Magedok Raspberry Pi touchscreen monitor is 10.1 inches in size and portable. The build quality is excellent, and the touchscreen responds quickly and reliably

Ned Jacobs

The small display arrives securely packaged. Included are a 12V power adapter, a USB to USB-C cable, a sufficiently long HDMI cable, and mounting screws.

Sabrina Miller

I am absolutely thrilled with the Raspberry Pi touchscreen monitor

Since I started using it three months ago, it has proven to be indispensable for my Raspberry Pi projects.













Display

Display Type：LCD

Panel Size (inch) ：10.4

Aspect Ratio：3:4



Native Resolution ：1200(RGB)×1600

Contrast Ratio ：1000:1( Typ.)

Color Support ：16.7M



Color Gamut ：76% NTSC

Brightness ：500nits

Viewing Angle：170 Degrees


Screen Coating ：Glosy

Refresh Rate（optional）：60Hz

Response Time（optional）：

Adaptive Sync：No



Mechanical

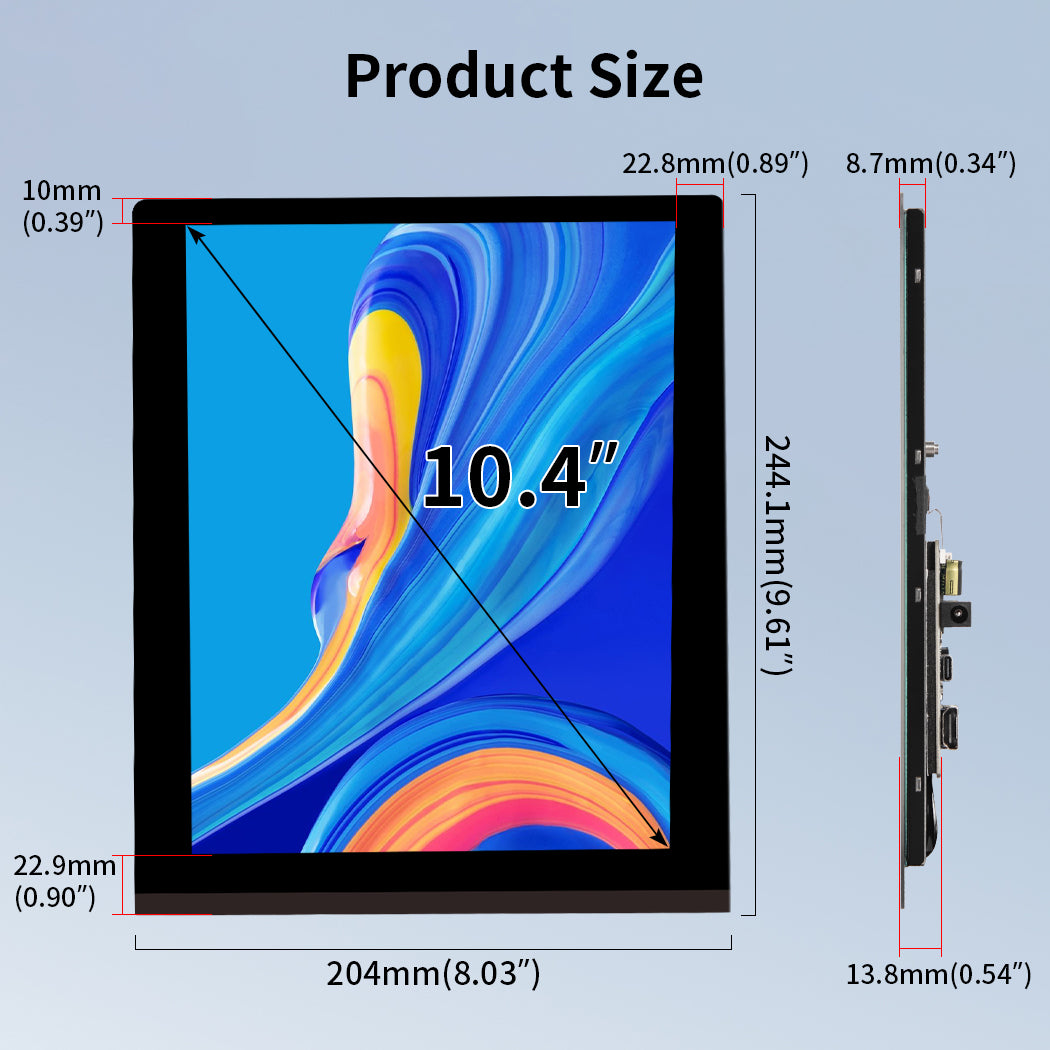

Dimensions & Net Weight：

204*244*13.8mm, 650g
Dimensions & Weight (Shipping)：

278*224*70mm, 1300g

Mounting Type：Desk&VESA Mount
Shell Material：Without shell



Environmental Parameters

Min Operating Temperature : -30°C

Max Operating Temperature: 85°C

Storage Temperature: -40-95°C



Touch Function

Yes/NO：Yes

Touch Controller：

Compatible OS：Andriod,Windows,Linux,Mac OS(Not support)

Power

Power Consumption (Typical) 24W

Audio

Type：Speaker(Not included)

Output Power / Channel：1W*2



Other

Color：Black

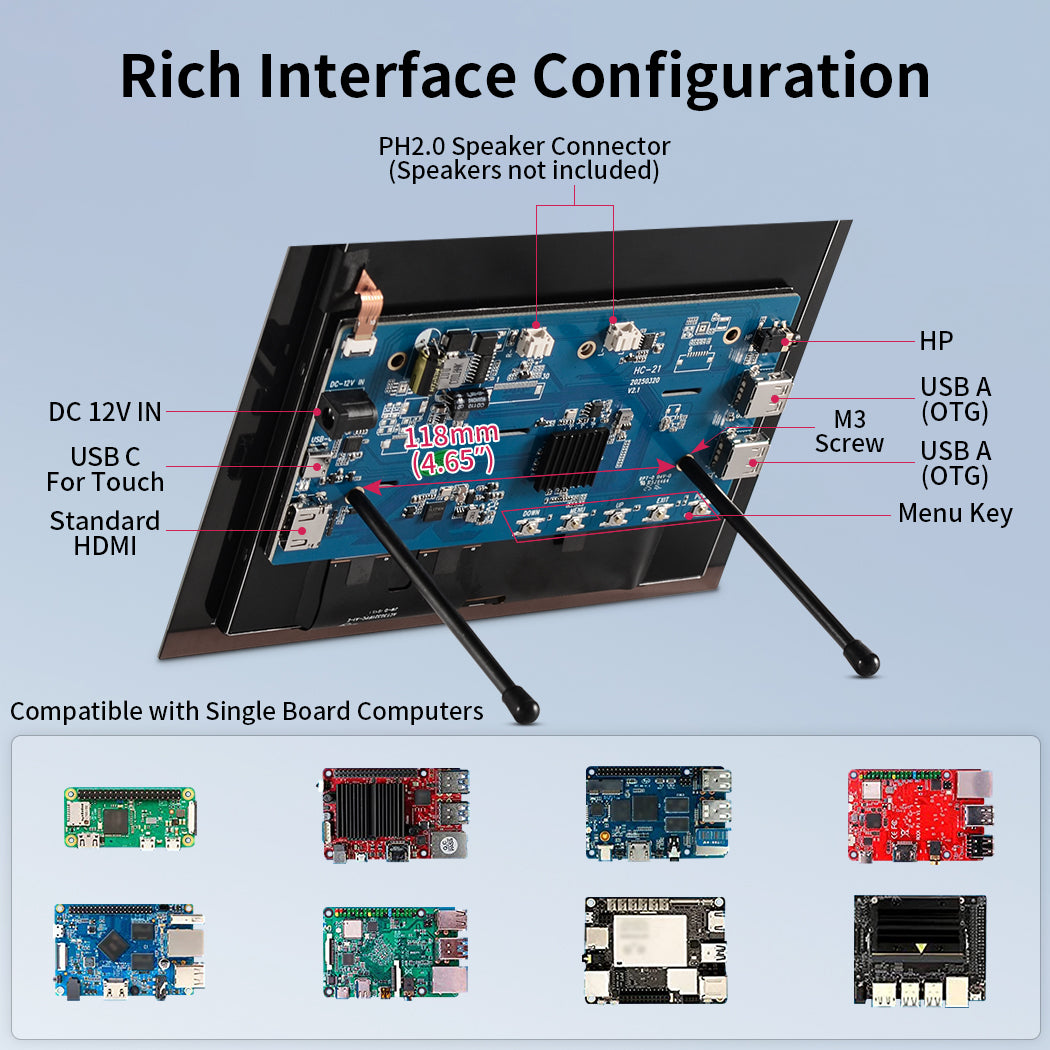

Connectivity：Standard HDMI (HDCP 1.4)x 1

Type C （touch）x 1
I/O Ports: 3.5mm HP x 1
Accessories (vary by regions): 12V 2A Adapter x 1,  USB C-USB A Cable  x 1, Standard HDMI Cable  x 1, Simple Stand x 2, User Manual x 1

Q1: The Monitor shows: “No signal”, how to solve it?

Please connect the power first, then check the HDMI cable and USB-C power cable have been firmly connected to the monitor's port. In the OSD menu, make sure the power key is open.

Q2: Power is On, why no image appears on screen?
  1. Make sure the video cable connecting the monitor to the computer is properly and securely connected.
  2. Adjust the brightness and contrast settings.
  3. Make sure the correct input source is selected.

Q3: Why shows wrong or abnormal colors?
  1. If any colors (red, green, or blue) are missing, check the video cable to make sure it is properly and securely connected. Loose or broken pins in the cable connector could cause an improper connection.
  2. Connect the monitor to another computer.
  3. Pls check if you using an older graphics card.

Q4: Why screen image is blurred?
  1. Adjust the resolution to the correct Aspect Ratio.
  2. Reset the monitor to factory settings.

Q5: The screen isn’t centered correctly
  1. Adjust the horizontal and vertical controls via the OSD Menu.
  2. Check the Aspect Ratio.
  3. Reset the monitor to factory settings.


Q6: The screen appears yellow

Make sure the “Blue Light Filter” is Off.

Q7: Randomly no display or go blank Or showing "Insufficient Power Warning" on the monitor, How to do it?
  1. Please avoid pulling the cables.
  2. Please connect to a PD30W adapter to ensure the power supply is enough.
  3. Lower the volume and the brightness. High volume and brightness may increase power consumption and cause the monitor going off.


Q8: Monitor has image,but No Sound coming out?

Please check volume settings whether Mute has been turned on or not first. Monitor's audio jack is for audio output ,not input.Users can not input the audio. When connecting a cable to the monitor's headphone jack,the Monitor will turn off the internal speakers.


Q9: Why my monitor shows Out of Range?

It means the video source inputted is not in monitor's supported video input formats, and the monitor cannot display the resolution or the frequency normally. Please check monitor's supported operating modes.


Q10: Why it is no signal when i use the usb-c to usb-c Cable in the USB C device?
  1. Please make sure the USB C device support the video input
  2. Make sure use the USB-C 3.1 Gen 2 (10 Gbps) Cable
  3. It need to connect the USB C power port when powered insufficiently by USB C full function port


Q11: Why my device has USB C，connect the usb c 3.1 gen 2 cable but no video?

 For some Terminal equipment manufacture,the USB C not support USB C ALt mode, the hardware can’t provide the video signal.


Q12: Does it need a USB-C converter when connecting the Nintendo Switch?

No, it doesn’t need. It is plug and play. Use the original adapter, one single power cable can power both the monitor and Switch.
