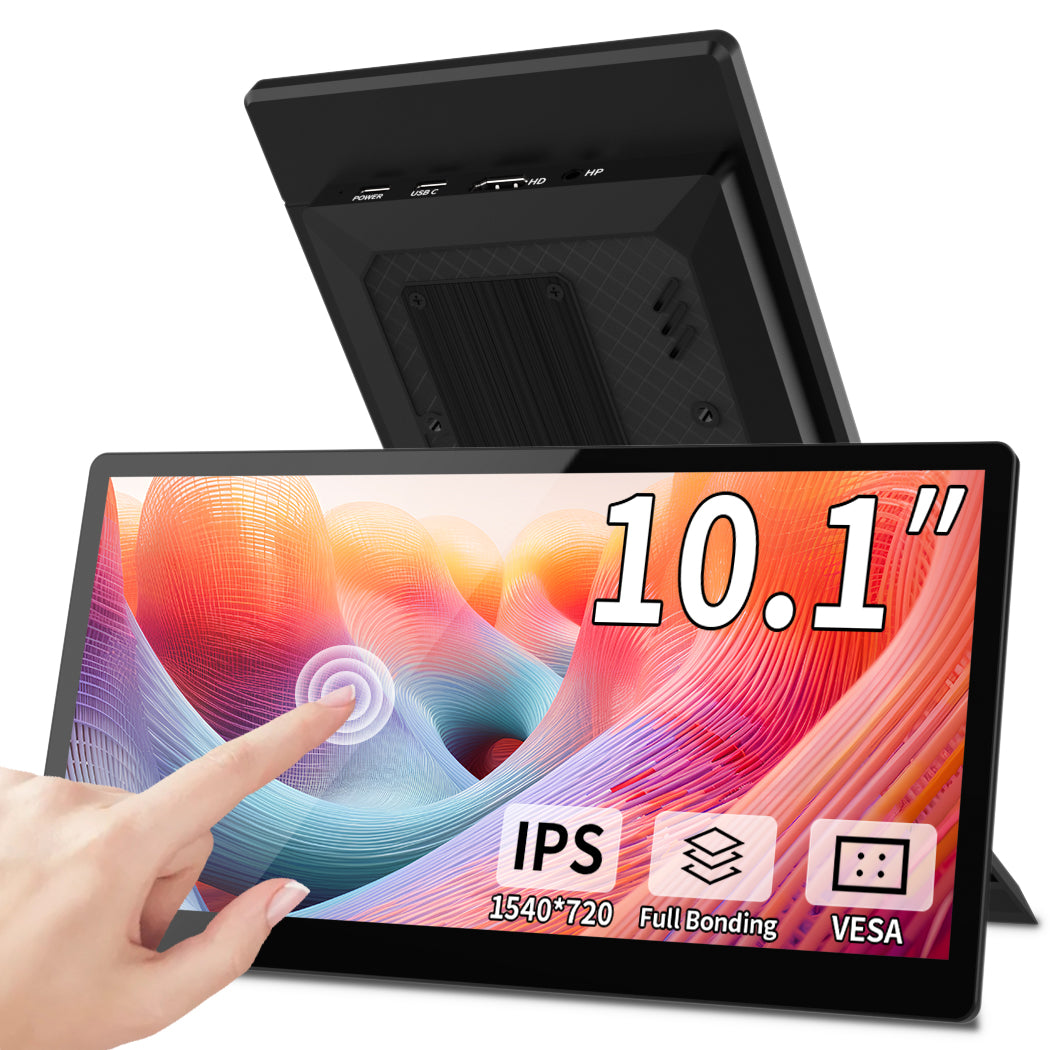

Name: 10.1 Inch IPS 1540*720 USB-C Portable Touchscreen Mini Monitor (T101F)
Brand: Magedok
SKU: J9-OFOS-K45S
Price: 99.0 USD
Availability: InStock

10.1 Inch IPS 1540*720 USB-C Portable Touchscreen Mini Monitor (T101F)

10.1 Inch IPS 1540*720 USB-C Portable Touchscreen Mini Monitor (T101F)

$99.00

Title

$129.00

10.1 Inch IPS 1540*720 Stretched Bar Screen
Industrial Level Mini Touch Monitor
10 Points Capacitive Usb Touchscreen
Integrated Foldable Stand&VESA Mount

1540*720 Display

Optically Bonding

10 Points Touch

75*75mm VESA

If you want to customize this product, please contact now

description
tech specs
support
download
reviews

**Magedok 10.1 Inch IPS 1540*720 Portable Touchscreen Monitor**

Magedok 10.8 Inch FHD USB-C With PD Fast Charge Portable Touch Monitor

Small Touch Screen More Details

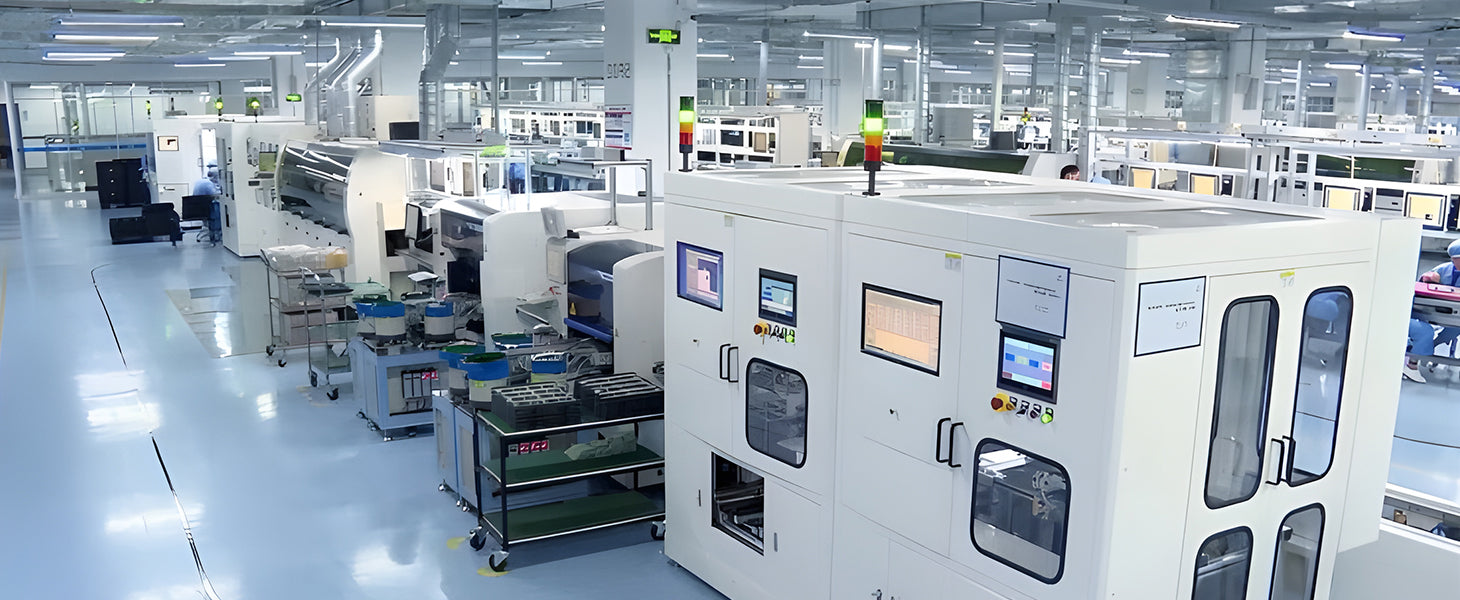

Industrial Grade Lcd Screen

USB A OTG Ports

350Nits Brightness

Adjust Kickstand

Experience Unmatched Portability with Magedok

Plug And Play

Connect Easily Via Full-Featured USB-C To Your Variety Of Devices Such As PCs, Laptops, Smartphones, And Gaming Consoles With USB 3.1 Or Thunderbolt 3 Port.

**75*75mm VESA Mounting**

The TouchScreen Supports 75x75mm VESA Mounting, Allowing You To Save Desk Space And Create A Cleaner, More Ergonomic Workspace..

Support USB A OTG Ports

The Mini Display Features Third USB-A (OTG) Ports For Peripheral Expansion.Works Seamlessly With Raspberry Pi5/4, Jetson Nano, Mini PCs, And Other Embedded Systems.

Versatile Connectivity & Widely Compatible

Experience Convenience in Work and Entertainment with a Touch Monitor

30-Day Back Guarantee

Hassle-Free Warranty

Lifetime Customer Support

Let's Hear What Our Customers Say

Regina Moore

The Magedok Raspberry Pi touchscreen monitor is 10.1 inches in size and portable. The build quality is excellent, and the touchscreen responds quickly and reliably

Ned Jacobs

The small display arrives securely packaged. Included are a 12V power adapter, a USB to USB-C cable, a sufficiently long HDMI cable, and mounting screws.

Sabrina Miller

I am absolutely thrilled with the Raspberry Pi touchscreen monitor

Since I started using it three months ago, it has proven to be indispensable for my Raspberry Pi projects.

Display

Display Type：LCD

Panel Size (inch) ：10.1

Aspect Ratio：2.14:1

Native Resolution ：1540(RGB)×720

Contrast Ratio ：1000:1( Typ.)

Color Support ：16.7M

Color Gamut ：60% NTSC

Brightness ：350nits

Viewing Angle：170 Degrees

Screen Coating ：Glossy

Refresh Rate（optional）：60Hz

Response Time（optional）：

Adaptive Sync：No

Mechanical

Dimensions & Net Weight：

249*131.6*20mm, 460g
Dimensions & Weight (Shipping)：

265*152*68mm, 1000g

Mounting Type：Desk&VESA Mount
Shell Material：Engineering Plastics

Environmental Parameters

Min Operating Temperature : -30°C

Max Operating Temperature: 85°C

Storage Temperature: -40-95°C

Touch Function

Yes/NO：Yes

Touch Controller：

Compatible OS：Andriod,Windows,Linux,Mac OS

Power

Power Consumption (Typical) 5W

Audio

Type：Speaker

Output Power / Channel：1W*2

Other

Color：Black
Connectivity：Standard HDMI (HDCP 1.4)x 1

Type C （power）x 1, Type C （full function）x 1, USB A（OTG）x 3
I/O Ports: 3.5mm HP x 1
Accessories (vary by regions): USB C 3.1 Gen2 Cable x 1, USB C-USB A Cable x 1, Standard HDMI Cable x 1, User Manual x 1

Q1: The Monitor shows: “No signal”, how to solve it?

Please connect the power first, then check the HDMI cable and USB-C power cable have been firmly connected to the monitor's port. In the OSD menu, make sure the power key is open.

Q2: Power is On, why no image appears on screen?

Make sure the video cable connecting the monitor to the computer is properly and securely connected.
Adjust the brightness and contrast settings.
Make sure the correct input source is selected.

Q3: Why shows wrong or abnormal colors?

If any colors (red, green, or blue) are missing, check the video cable to make sure it is properly and securely connected. Loose or broken pins in the cable connector could cause an improper connection.
Connect the monitor to another computer.
Pls check if you using an older graphics card.

Q4: Why screen image is blurred?

Adjust the resolution to the correct Aspect Ratio.
Reset the monitor to factory settings.

Q5: The screen isn’t centered correctly

Adjust the horizontal and vertical controls via the OSD Menu.
Check the Aspect Ratio.
Reset the monitor to factory settings.

Q6: The screen appears yellow

Make sure the “Blue Light Filter” is Off.

Q7: Randomly no display or go blank Or showing "Insufficient Power Warning" on the monitor, How to do it?

Please avoid pulling the cables.
Please connect to a PD30W adapter to ensure the power supply is enough.
Lower the volume and the brightness. High volume and brightness may increase power consumption and cause the monitor going off.

Q8: Monitor has image,but No Sound coming out?

Please check volume settings whether Mute has been turned on or not first. Monitor's audio jack is for audio output ,not input.Users can not input the audio. When connecting a cable to the monitor's headphone jack,the Monitor will turn off the internal speakers.

Q9: Why my monitor shows Out of Range?

It means the video source inputted is not in monitor's supported video input formats, and the monitor cannot display the resolution or the frequency normally. Please check monitor's supported operating modes.

Q10: Why it is no signal when i use the usb-c to usb-c Cable in the USB C device?

Please make sure the USB C device support the video input
Make sure use the USB-C 3.1 Gen 2 (10 Gbps) Cable
It need to connect the USB C power port when powered insufficiently by USB C full function port

Q11: Why my device has USB C，connect the usb c 3.1 gen 2 cable but no video?

For some Terminal equipment manufacture,the USB C not support USB C ALt mode, the hardware can’t provide the video signal.

Q12: Does it need a USB-C converter when connecting the Nintendo Switch?

No, it doesn’t need. It is plug and play. Use the original adapter, one single power cable can power both the monitor and Switch.
