15.6 Inch 144Hz IPS 1080P Portable Gaming Monitor for PS5 (MG156-FN01)
15.6 Inch 144Hz IPS 1080P Portable Gaming Monitor for PS5 (MG156-FN01)
15.6 Inch 144Hz IPS 1080P Portable Gaming Monitor for PS5 (MG156-FN01)
15.6 Inch 144Hz IPS 1080P Portable Gaming Monitor for PS5 (MG156-FN01)
15.6 Inch 144Hz IPS 1080P Portable Gaming Monitor for PS5 (MG156-FN01)
15.6 Inch 144Hz IPS 1080P Portable Gaming Monitor for PS5 (MG156-FN01)
15.6 Inch 144Hz IPS 1080P Portable Gaming Monitor for PS5 (MG156-FN01)
15.6 Inch 144Hz IPS 1080P Portable Gaming Monitor for PS5 (MG156-FN01)

15.6 Inch 144Hz IPS 1080P Portable Gaming Monitor for PS5 (MG156-FN01)

$289.00
Title
$369.00

  • 15.6 Inch 144Hz 1080P Gaming Monitor

  • Monitor with USB-C/HDMI /Mini DP Input

  • Freesync and HDR Support

  • Slim and Weightless ,integrated bracket

Only 1 Cable Connect

Boost your productivity up to 70%

Power Save 60%

MultiDevice Compatibility

 If you want to customize this product, please contact now

  • description

  • tech specs

  • support

  • download

  • reviews

Magedok 15.6 Inch 144Hz IPS 1080P Portable Gaming Monitor

15.6 Inch 144Hz IPS 1080P Gaming Monitor

1920*1080

1920*1080 IPS FHD

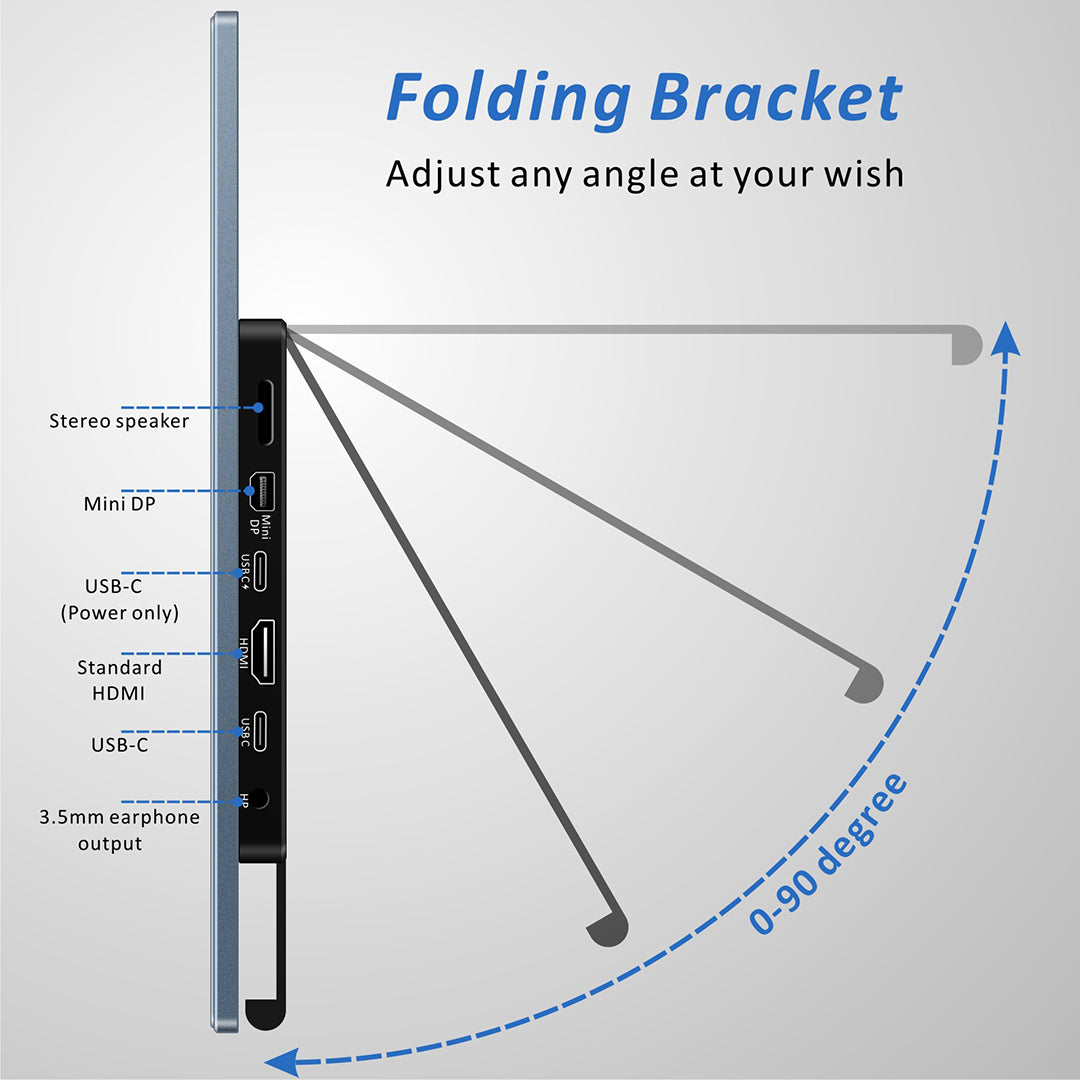

Foldable Stand

Supports 0-90 Degree Angle Adjust

15.6 Inch

15.6 inch Size Screen

300cd/m²

300cd/m² Brightness

Touch Monitor Make Work More Worry-free

Enjoy Both Freestanding& VESA Mountable

30-Day Back Guarantee

Hassle-Free Warranty

Lifetime Customer Support

Let's Hear What Our Customers Say

Regina Moore

The Magedok Raspberry Pi touchscreen monitor is 10.1 inches in size and portable. The build quality is excellent, and the touchscreen responds quickly and reliably

Ned Jacobs

The small display arrives securely packaged. Included are a 12V power adapter, a USB to USB-C cable, a sufficiently long HDMI cable, and mounting screws.

Sabrina Miller

I am absolutely thrilled with the Raspberry Pi touchscreen monitor

Since I started using it three months ago, it has proven to be indispensable for my Raspberry Pi projects.













Display

Display Type： LCD

Panel Size (inch) ： 15.6

Aspect Ratio： 16:9



Native Resolution ：1920*1080

Contrast Ratio ：1200:1

Colour Support ：16.7M



Colour Gamut ：72%NTSC

Brightness : 300 Nits

Viewing Angle：178°


Screen Coating ：Matte

Refresh Rate（optional）:144Hz

Response Time（optional）：1Ms



Adaptive Sync：Freesync



Mechanical



Dimensions & Net Weight：361*229.6*6(17)mm, 900g
Dimensions & Weight (Shipping)：415*271*65mm, 2500g

Mounting Type：Desk Mount
Shell Material：Aluminium+Engineering Plastics



Environmental Parameters

Operating Temperature : 0~50℃

Storage Temperature: -20~60℃

Humidity Range Operating :



Touch Function

Yes/NO： NO

Touch Controller：

Compatible OS：

Power

Power Consumption (Typical): 10W

Audio

Type：Speaker&3.5mm Earphone Jack

Output Power / Channel：1W*2



Other



Color：Dark blue
Connectivity：USB C 3.1 Gen2  x 1
USB C PD Power x 1
Standard HDMI (HDCP 2.0)x 1
Mini DisplayPort 1.2x 1
I/O Ports:  3.5mm Audio Jack x 1
Accessories (vary by regions)：Power Adapter x 1, USB C  3.1 Gen2 Cable  x 1, Standard HDMI Cable  x 1, Storage bag x 1,  User Manual x 1

Q1: The Monitor shows: “No signal”, how to solve it?

Please connect the power first, then check the HDMI cable and USB-C power cable have been firmly connected to the monitor's port. In the OSD menu, make sure the power key is open.

Q2: Power is On, why no image appears on screen?
  1. Make sure the video cable connecting the monitor to the computer is properly and securely connected.
  2. Adjust the brightness and contrast settings.
  3. Make sure the correct input source is selected.

Q3: Why shows wrong or abnormal colors?
  1. If any colors (red, green, or blue) are missing, check the video cable to make sure it is properly and securely connected. Loose or broken pins in the cable connector could cause an improper connection.
  2. Connect the monitor to another computer.
  3. Pls check if you using an older graphics card.

Q4: Why screen image is blurred?
  1. Adjust the resolution to the correct Aspect Ratio.
  2. Reset the monitor to factory settings.

Q5: The screen isn’t centered correctly
  1. Adjust the horizontal and vertical controls via the OSD Menu.
  2. Check the Aspect Ratio.
  3. Reset the monitor to factory settings.


Q6: The screen appears yellow

Make sure the “Blue Light Filter” is Off.

Q7: Randomly no display or go blank Or showing "Insufficient Power Warning" on the monitor, How to do it?
  1. Please avoid pulling the cables.
  2. Please connect to a PD30W adapter to ensure the power supply is enough.
  3. Lower the volume and the brightness. High volume and brightness may increase power consumption and cause the monitor going off.


Q8: Monitor has image,but No Sound coming out?

Please check volume settings whether Mute has been turned on or not first. Monitor's audio jack is for audio output ,not input.Users can not input the audio. When connecting a cable to the monitor's headphone jack,the Monitor will turn off the internal speakers.


Q9: Why my monitor shows Out of Range?

It means the video source inputted is not in monitor's supported video input formats, and the monitor cannot display the resolution or the frequency normally. Please check monitor's supported operating modes.


Q10: Why it is no signal when i use the usb-c to usb-c Cable in the USB C device?
  1. Please make sure the USB C device support the video input
  2. Make sure use the USB-C 3.1 Gen 2 (10 Gbps) Cable
  3. It need to connect the USB C power port when powered insufficiently by USB C full function port


Q11: Why my device has USB C，connect the usb c 3.1 gen 2 cable but no video?

 For some Terminal equipment manufacture,the USB C not support USB C ALt mode, the hardware can’t provide the video signal.


Q12: Does it need a USB-C converter when connecting the Nintendo Switch?

No, it doesn’t need. It is plug and play. Use the original adapter, one single power cable can power both the monitor and Switch.


Subject

Release Date

Download

User Manual

2020/10/20
